CENTRIC
12162143

第三方数据CENTRIC : 12162143

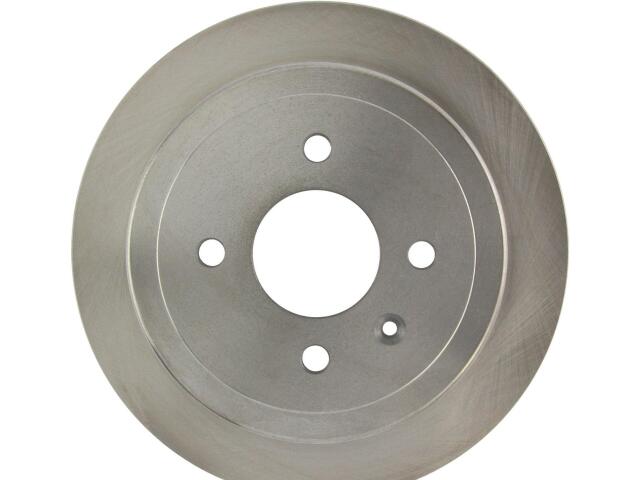

Rotor
CENTRIC : 12162143

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID (IN): 5.689
Hat ID (MM): 144.500
Misc Holes: 1
Nominal Thickness (IN): 0.409
Nominal Thickness (MM): 10.400
Outside Diameter (IN): 10.157
Outside Diameter (MM): 258.000
Overall Height (IN): 2.264
Overall Height (MM): 57.500
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

CHEVROLET (1)

参考号

厂商	号码
BEST BRAKES USA	GP55503*
DFC	6004704*
MIGHTY	85038*
O'REILLY/BRAKEBEST SELECT	512031RG*

厂商	号码
QUALIS	4131*
RAYBESTOS	581052*
RAYBESTOS UNBRANDED	581052*
ULTRAHC1000 BRAKE PADS	661203*

厂商	号码
WAGNER BRAKE	BD180733*
WINHERE BRAKE PARTS INC.	661203*
WINSTOP BRAKE ROTORS AND DRUMS	WS24375*

OE号码

品牌	号码
OE	121.6214*
