CENTRIC
12161095

第三方数据CENTRIC : 12161095

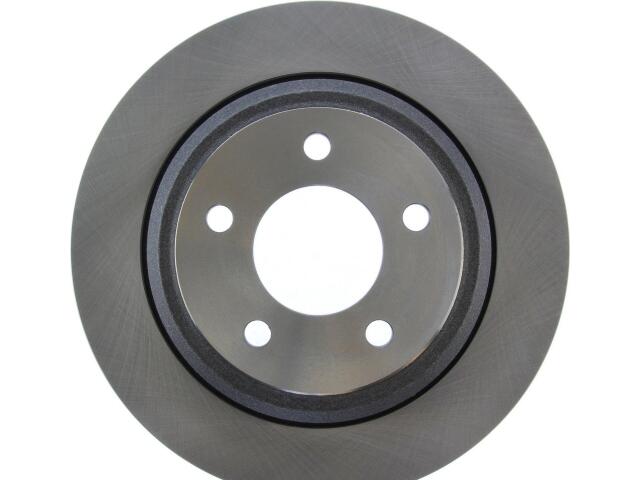

Rotor
CENTRIC : 12161095

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18.000
Hat ID (IN): 6.740
Hat ID (MM): 171.200
Max PB Drum Dia (IN): 7.276
Max PB Drum Dia (MM): 184.800
Nominal Drum Diameter (IN): 7.240
Nominal Drum Diameter (MM): 183.900
Nominal Thickness (IN): 0.748
Nominal Thickness (MM): 19.000
Outside Diameter (IN): 11.618
Outside Diameter (MM): 295.100
Overall Height (IN): 2.433
Overall Height (MM): 61.800
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

MAZDA (1)

参考号

厂商	号码
AIMCO	5417*
AMERIBRAKES	49211*
BEST BRAKES USA	GP15400*
BEST BRAKES USA	GP5417*
CERTIFIED BRAKE DRUMS & ROTORS	4227*

厂商	号码
DFC	6005409*
FORMULA BLUE HYDRAULIC BRAKE PARTS	E126-66-10*
IAP/KUHLTEK MOTORWERKS	BR90107*
MAGMA BRAKES	PMR20524*
MIGHTY	85024*

厂商	号码
PB/PROSTOP DRUMS AND ROTORS	54179*
QUALIS	4227*
RAYBESTOS	680898*
RAYBESTOS UNBRANDED	680898*

OE号码

品牌	号码
OE	121.6109*
