CENTRIC
12150021

第三方数据CENTRIC : 12150021

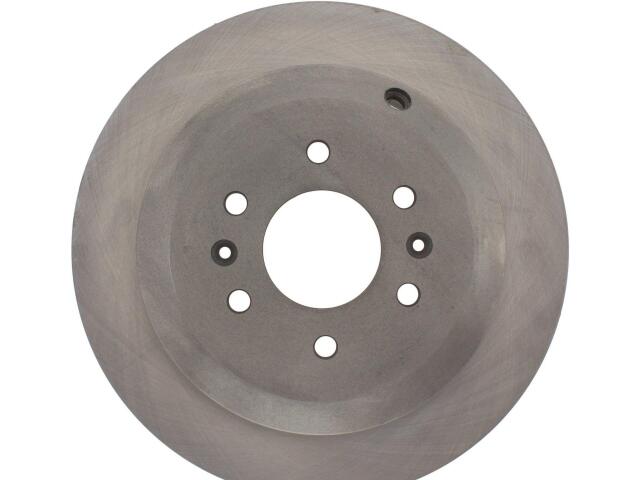

Rotor
CENTRIC : 12150021

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.449
Discard Thickness (MM): 11.400
Max PB Drum Dia (IN): 8.307
Max PB Drum Dia (MM): 211.000
Misc Holes: 3
Nominal Drum Diameter (IN): 8.268
Nominal Drum Diameter (MM): 210.000
Nominal Thickness (IN): 0.508
Nominal Thickness (MM): 12.900
Outside Diameter (IN): 12.756
Outside Diameter (MM): 324.000
Overall Height (IN): 2.591
Overall Height (MM): 65.800
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

KIA (1)

参考号

厂商	号码
AUTOZONE/RAYBESTOS	98073*
AUTOZONE/RAYBESTOS	980734*

厂商	号码
PARTS PLUS DRUMS AND ROTORS	P98073*
RAYBESTOS UNBRANDED	980734*

厂商	号码
RAYBESTOS UNBRANDED	98073*

OE号码

品牌	号码
OE	121.5002*
