CENTRIC
12146080

第三方数据CENTRIC : 12146080

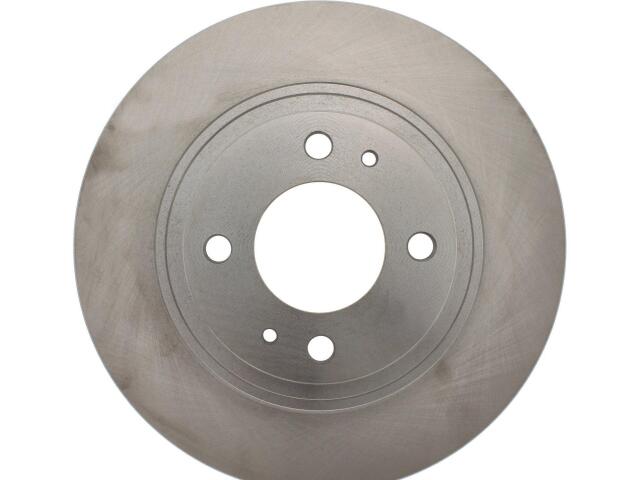

Rotor
CENTRIC : 12146080

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Mounting: Floating
Discard Thickness (IN): 0.606
Discard Thickness (MM): 15.400
Hat ID (IN): 4.835
Hat ID (MM): 122.800
Misc Holes: 2
Nominal Thickness (IN): 0.669
Nominal Thickness (MM): 17.000
Outside Diameter (IN): 10.118
Outside Diameter (MM): 257.000
Overall Height (IN): 1.512
Overall Height (MM): 38.400
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

MITSUBISHI (1)

参考号

厂商	号码
AUTOZONE/RAYBESTOS	98103*
AUTOZONE/RAYBESTOS	981038*

厂商	号码
PARTS PLUS DRUMS AND ROTORS	P98103*
PARTS PLUS DRUMS AND ROTORS	PP98103*

厂商	号码
RAYBESTOS UNBRANDED	981038*
RAYBESTOS UNBRANDED	98103*

OE号码

品牌	号码
OE	121.4608*
