CENTRIC
12146075

第三方数据CENTRIC : 12146075

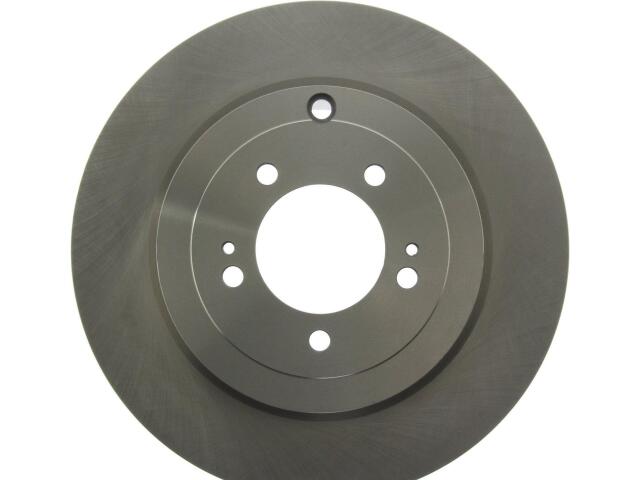

Rotor
CENTRIC : 12146075

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID (IN): 7.480
Hat ID (MM): 190.000
Max PB Drum Dia (IN): 7.520
Max PB Drum Dia (MM): 191.000
Misc Holes: 3
Nominal Drum Diameter (IN): 7.476
Nominal Drum Diameter (MM): 189.900
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 2.327
Overall Height (MM): 59.100
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
OE	121.4607*
