CENTRIC
12142109

第三方数据CENTRIC : 12142109

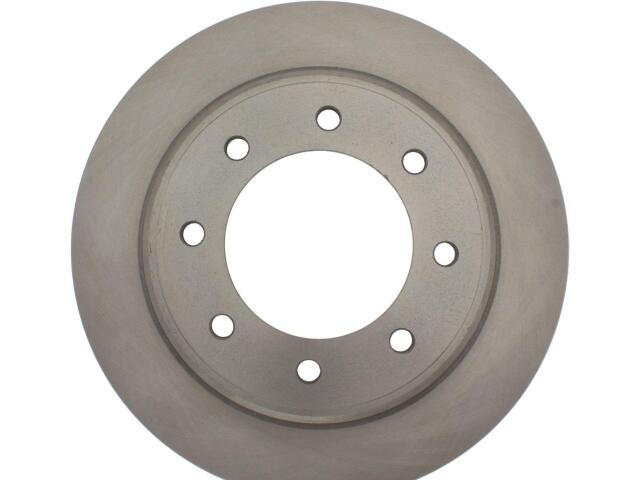

Rotor
CENTRIC : 12142109

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 6.508
Bolt Circle Diameter (MM): 165.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.500
Hat ID (IN): 8.209
Hat ID (MM): 208.500
Max PB Drum Dia (IN): 8.965
Max PB Drum Dia (MM): 227.700
Nominal Drum Diameter (IN): 8.933
Nominal Drum Diameter (MM): 226.900
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 14.370
Outside Diameter (MM): 365.000
Overall Height (IN): 3.598
Overall Height (MM): 91.400
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

NISSAN (3)

NV1500 (1)

NV2500 (2)

NV3500 (2)

参考号

厂商	号码
AUTOZONE/RAYBESTOS	98097*
AUTOZONE/RAYBESTOS	980974FZ*
AUTOZONE/RAYBESTOS	980974*

厂商	号码
PARTS PLUS DRUMS AND ROTORS	P98097*
PARTS PLUS DRUMS AND ROTORS	PP98097*
RAYBESTOS UNBRANDED	980974*

厂商	号码
RAYBESTOS UNBRANDED	980974FZ*
RAYBESTOS UNBRANDED	98097*

OE号码

品牌	号码
OE	121.4210*
