CENTRIC
12133075

第三方数据CENTRIC : 12133075

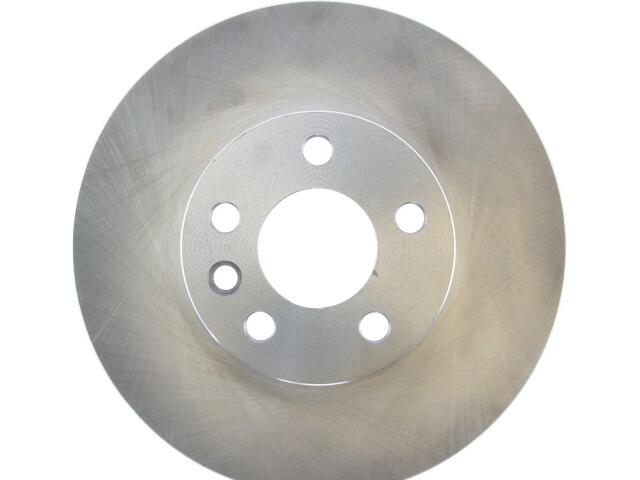

Rotor
CENTRIC : 12133075

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.409
Bolt Circle Diameter (MM): 112.000
Disc Mounting: Floating
Discard Thickness (IN): 0.866
Discard Thickness (MM): 22.000
Misc Holes: 1
Nominal Drum Diameter (IN): 5.669
Nominal Drum Diameter (MM): 144.000
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000
Overall Height (IN): 2.205
Overall Height (MM): 56.000
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

VOLKSWAGEN (1)

参考号

厂商	号码
BEST BRAKES USA	GP13412*
BEST BRAKES USA	GP3424*

厂商	号码
DFC	6007404*
QUALIS	4566*

厂商	号码
UQUALITY AUTOMOTIVE PRODUCTS	R3307*

OE号码

品牌	号码
OE	121.3307*
