BREMBO
09B46111

第三方数据BREMBO : 09B46111

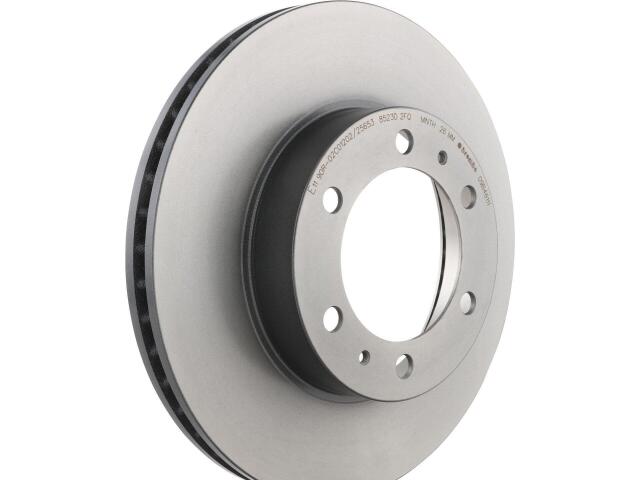

Rotor
BREMBO : 09B46111

Center Hole Diameter (MM): 108.00
Material: Grey Cast Iron
Minimum Thickness (MM): 26
Nominal Thickness (MM): 28.00
Number of Holes: 6
Outside Diameter (MM): 319.00
Overall Height (MM): 672.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Torque Spec(NM): 112

适用车型

TOYOTA (3)

TACOMA (3)

2.7L L4 (19)

2005	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2006	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2007	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2008	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2009	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2010	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2011	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2012	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2013	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2014	PRIME; Vented Fits Front; 4WDor Front; Pre Runner 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2015	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2016	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2017	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2018	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2019	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2020	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2021	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2022	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

2023	PRIME; Vented Front 4351204050, 4351204051, 4351204052, 4351235320, 4351235321, 4351235322

3.5L V6 (8)

4.0L V6 (11)

4RUNNER (2)

FJ CRUISER (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER BRAKES	YH145458*
AIMCO	3132*
ALTROM	A9424153B*
ATE (DELETED)	CW2872*
ATE/PREMIUMONE	CW2872*
BECK/ARNLEY	083-296*
BREMBO	09.B461.1*
BREMBO	2585*
BREMBO NORTH AMERICA	2585*

厂商	号码
BREMBO NORTH AMERICA	09.B461.1*
CARQUEST PREMIUM COATED ROTORS	YH145458*
CENTRIC PARTS	320.4412*
DURAGO	BR3132*
HELLA-PAGID	35511726*
FREIGHTLINER	43512 3532*
IMC/PA	43512 3532*
INTERAMERICAN MOTOR CORPORATION	43512 3532*

厂商	号码
LORDCO - ZIMMERMANN	590.2847.2*
RAYBESTOS	98016*
RAYBESTOS UNBRANDED	98016*
WAGNER BRAKE	BD12609*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	BD12609*
WAGNER BRAKES MEXICO	BD12609*
WAGNER CALIPERS	BD12609*
WD EXPRESS	43512 3532*

OE号码

品牌	号码
OE	09.B461.1*
TOYOTA	435120405*
TOYOTA	435120405*

品牌	号码
TOYOTA	435120405*
TOYOTA	435123532*

品牌	号码
TOYOTA	435123532*
TOYOTA	435123532*
