BREMBO
09B02511

第三方数据BREMBO : 09B02511

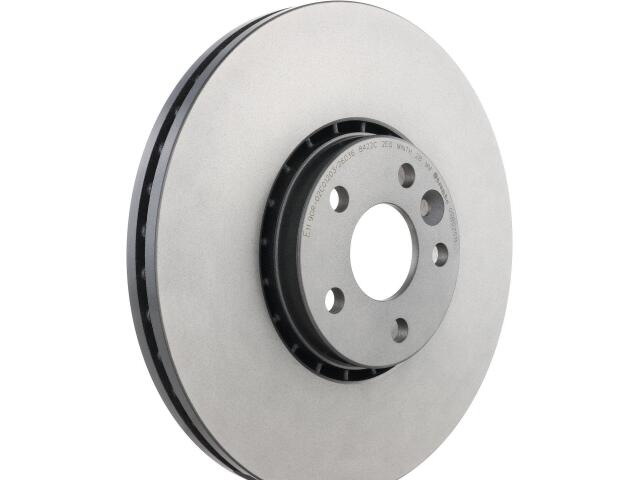

Rotor
BREMBO : 09B02511

Center Hole Diameter (MM): 63.60
Fixing Screws: Included
Material: High Carbon Cast Iron
Minimum Thickness (MM): 28
Nominal Thickness (MM): 30.00
Number of Holes: 5
Outside Diameter (MM): 328.00
Overall Height (MM): 520.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Torque Spec(NM): 140

适用车型

VOLVO (1)

参考号

厂商	号码
AIMCO	3442*
AUTO-CAMPING	VO-6862B*
BREMBO	09.B025.1*
BREMBO NORTH AMERICA	09.B025.1*
DURAGO	BR90099*
FREIGHTLINER	405 53050 00*
FREIGHTLINER	405 53050 25*
FREIGHTLINER	405 53050 39*
FREIGHTLINER	405 53050 50*
FREIGHTLINER	405 53050 50*
FREIGHTLINER	09 B025 1*

厂商	号码
IMC MFG NUMBER CATALOG	09 B025 1*
IMC/PA	09 B025 1*
INTERAMERICAN MOTOR CORPORATION	09 B025 1*
INTERAMERICAN MOTOR CORPORATION	404 53 07*
INTERAMERICAN MOTOR CORPORATION	405 53 07*
INTERAMERICAN MOTOR CORPORATION	3127734*
INTERAMERICAN MOTOR CORPORATION	610 3717 2*
LORDCO - ZIMMERMANN	610.3717.2*
LORDCO - ZIMMERMANN	610.3717.5*
MOTORCADE/ ZIM	610.3717.5*

厂商	号码
MOTORCADE/ ZIM	610.3717.2*
RAYBESTOS	98077*
RAYBESTOS UNBRANDED	98077*
RAYBESTOS UNBRANDED	980779*
WD EXPRESS	405 53050 00*
WD EXPRESS	405 53050 50*
WD EXPRESS	405 53050 50*
WD EXPRESS	405 53050 39*
WD EXPRESS	405 53050 25*
WD EXPRESS	09 B025 1*

OE号码

品牌	号码
OE	09.B025.1*
VOLVO	31277342*

品牌	号码
VOLVO	31381986*
VOLVO	31471034*

品牌	号码
VOLVO	3138198*
