第三方数据BOSCH : 53011531

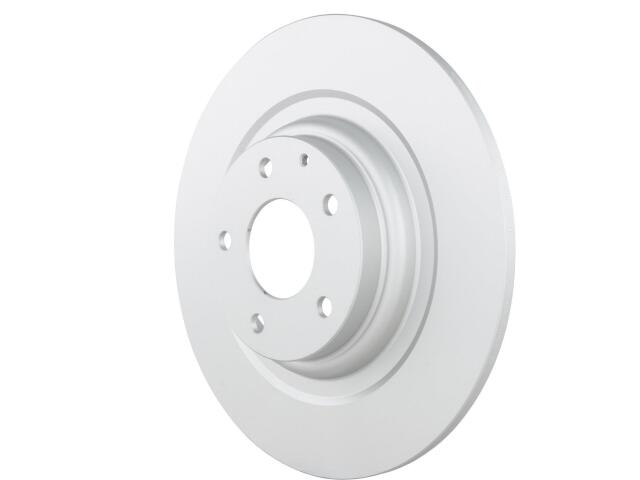

Rotor
BOSCH : 53011531

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 68 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 9 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 11 mm
Outside Diameter: 325 mm
Overall Height: 45 mm
Product Height: 1.771654 IN
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 11 mm

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	TK7826251*
