第三方数据BOSCH : 53011524

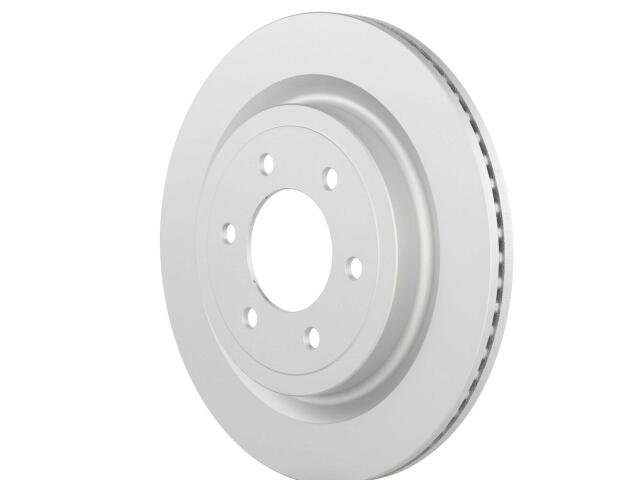

Rotor
BOSCH : 53011524

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 90.1 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 22.5 mm
Mounting Bolt Hole Circle Diameter: 135 mm
Mounting Bolt Hole Quantity: 6
Nominal Thickness: 24 mm
Outside Diameter: 350 mm
Overall Height: 45 mm
Product Height: 1.771654 IN
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 24 mm

适用车型

FORD (1)

OE号码

品牌	号码
OE	ML3Z2C026*
