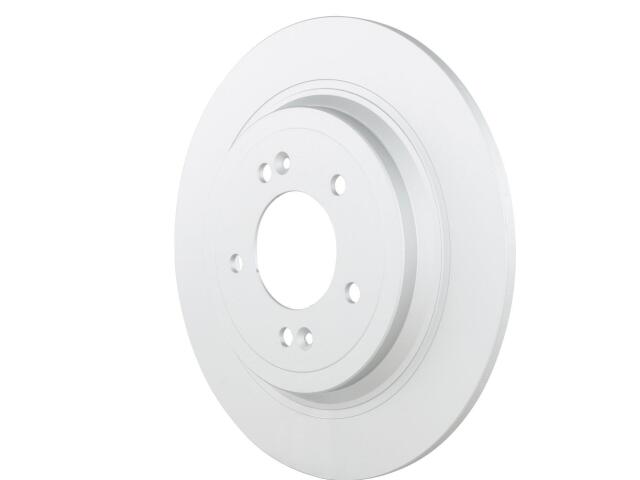

Rotor
BOSCH : 53011517

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 76 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 8.4 MM
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 10 mm
Outside Diameter: 302 mm
Overall Height: 31.2 MM
Product Height: 1.228346 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 10 mm

适用车型

HYUNDAI (2)

KIA (1)

OE号码

品牌	号码
OE	58411D370*
