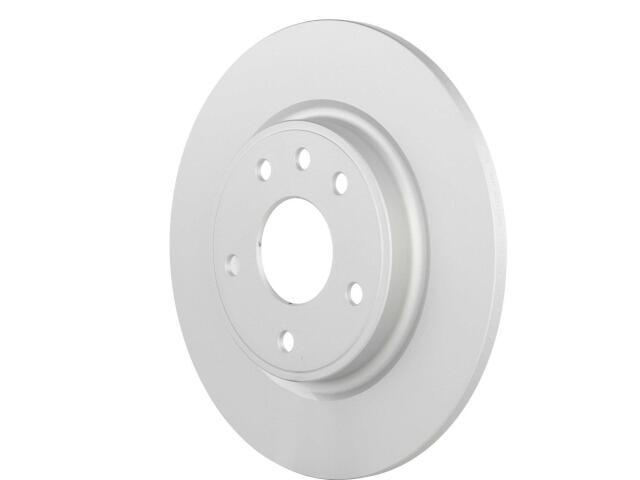

Rotor
BOSCH : 53011509

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 72.5 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 10.4 mm
Mounting Bolt Hole Circle Diameter: 127 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 12 mm
Outside Diameter: 320 mm
Overall Height: 35.2 mm
Product Height: 1.385827 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 12 mm

适用车型

CHRYSLER (2)

OE号码

品牌	号码
OE	68223507A*

品牌	号码
OE	68227707A*
