BOSCH
53011496

第三方数据BOSCH : 53011496

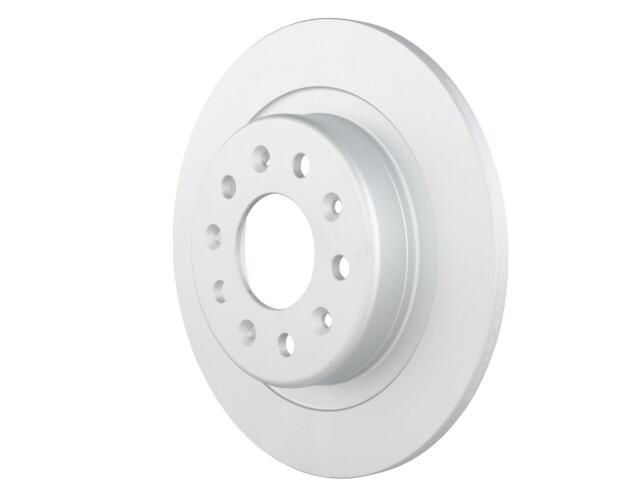

Rotor
BOSCH : 53011496

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 70.7 MM
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 10 mm
Mounting Bolt Hole Circle Diameter: 115 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 12 mm
Outside Diameter: 288 mm
Overall Height: 46 mm
Product Height: 1.811024 IN
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 12 mm

适用车型

BUICK (4)

CHEVROLET (2)

EQUINOX (3)

MALIBU (3)

GMC (1)

OE号码

品牌	号码
OE	1354424*
