BOSCH
53011480

第三方数据BOSCH : 53011480

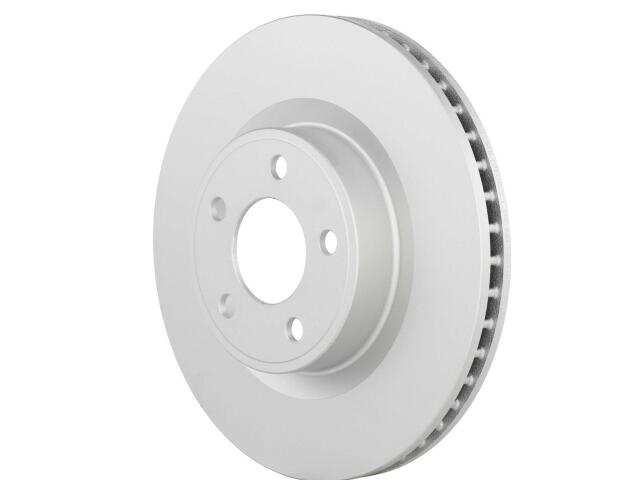

Rotor
BOSCH : 53011480

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 71.05 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 28.5 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 30 mm
Outside Diameter: 320 mm
Overall Height: 62 mm
Product Height: 2.440945 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 30 mm

适用车型

FORD (1)

OE号码

品牌	号码
OE	KR3Z1125*
