第三方数据BOSCH : 53011441

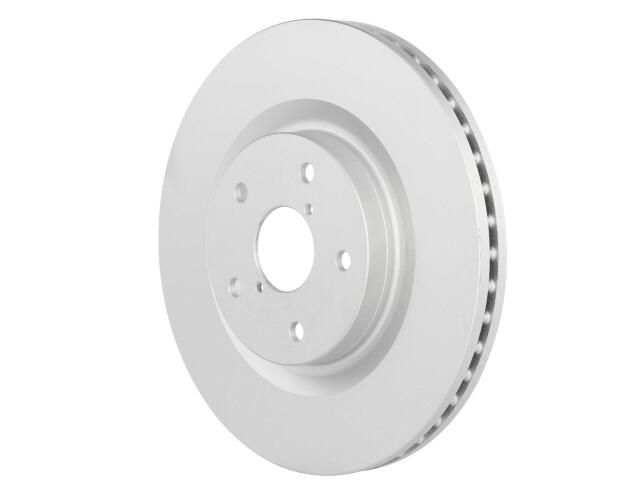

Rotor
BOSCH : 53011441

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 58 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 26 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 28 mm
Outside Diameter: 316 mm
Overall Height: 48.2 mm
Product Height: 1.897638 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 28 mm

适用车型

SUBARU (2)

OE号码

品牌	号码
OE	22630AN00*
