BOSCH
53011434

第三方数据BOSCH : 53011434

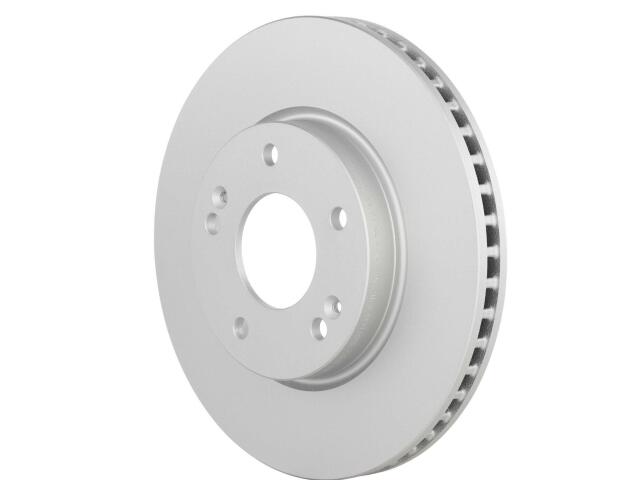

Rotor
BOSCH : 53011434

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 69 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 23 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 25 mm
Outside Diameter: 280 mm
Overall Height: 48.4 mm
Product Height: 1.905512 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 25 mm

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	51712AA00*
