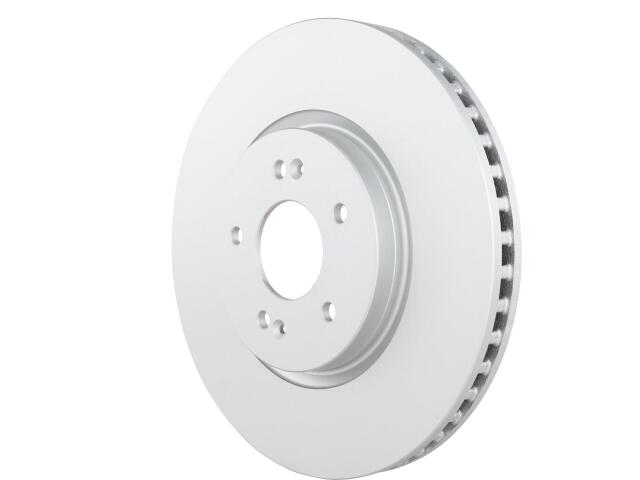

Rotor
BOSCH : 53011433

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 69 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 28 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 30 mm
Outside Diameter: 325 mm
Overall Height: 48.3 mm
Product Height: 1.901575 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 30 mm

适用车型

HYUNDAI (3)

KIA (2)

OE号码

品牌	号码
OE	51712GI00*

品牌	号码
OE	51712L010*

品牌	号码
OE	51712L110*
