第三方数据BOSCH : 53011415

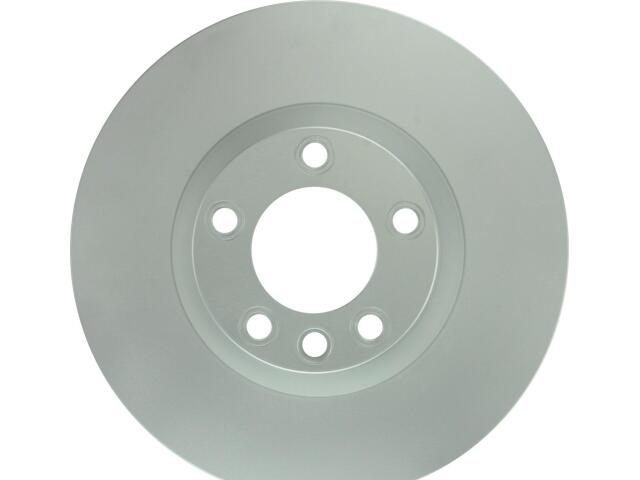

Rotor
BOSCH : 53011415

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 85 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 34 mm
Mounting Bolt Hole Circle Diameter: 130 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 36 mm
Outside Diameter: 359.9 MM
Overall Height: 68.5 mm
Product Height: 2.69685 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 36 mm

适用车型

VOLKSWAGEN (1)

OE号码

品牌	号码
OE	7P6615302*
