BOSCH
53011412

第三方数据BOSCH : 53011412

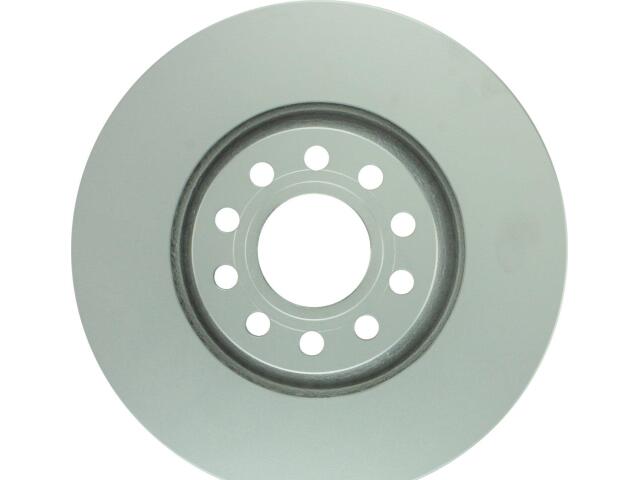

Rotor
BOSCH : 53011412

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 68 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 23 mm
Mounting Bolt Hole Circle Diameter: 112 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 25 mm
Outside Diameter: 312 mm
Overall Height: 46.3 mm
Product Height: 1.822835 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 25 mm

适用车型

AUDI (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER BRAKES	YH20091*

厂商	号码
CARQUEST/ WEAREVER BRAKES	YH20091*

OE号码

品牌	号码
OE	8E0615301*
