BOSCH
53011389

第三方数据BOSCH : 53011389

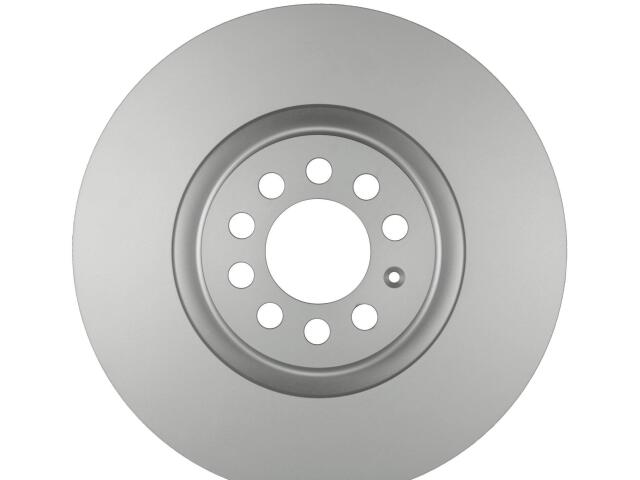

Rotor
BOSCH : 53011389

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 65 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Alutherm
Discard Thickness: 23 mm
Mounting Bolt Hole Circle Diameter: 100 mm
Mounting Bolt Hole Quantity: 9
Nominal Thickness: 25 mm
Outside Diameter: 312 mm
Overall Height: 34.46 mm
Product Height: 1.356693 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 25 mm

适用车型

VOLKSWAGEN (1)

AUDI (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER BRAKES	YH14538*

厂商	号码
CARQUEST/ WEAREVER BRAKES	YH14538*

OE号码

品牌	号码
OE	8N0615301*
