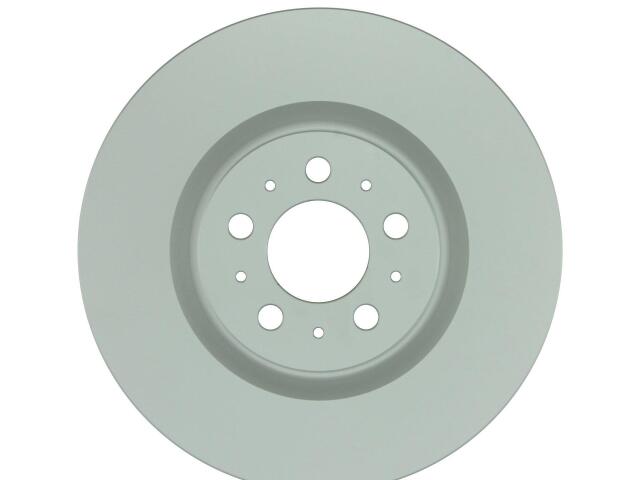

Rotor
BOSCH : 52011382

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 68 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 30 mm
Mounting Bolt Hole Circle Diameter: 108 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 32 mm
Outside Diameter: 329.9 MM
Overall Height: 50.3 mm
Product Height: 1.980315 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 32 mm

适用车型

VOLVO (2)

参考号

厂商	号码
ATE/PREMIUMONE	SP0004*

厂商	号码
RAYBESTOS UNBRANDED	98055*

厂商	号码
RAYBESTOS UNBRANDED	980554*

OE号码

品牌	号码
OE	30645222*
