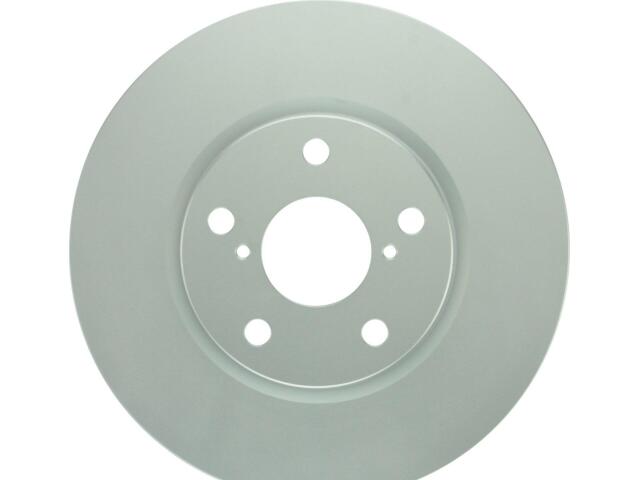

Rotor
BOSCH : 50011487

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 62 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 30 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 32 mm
Outside Diameter: 296 mm
Overall Height: 50.8 mm
Product Height: 2 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 32 mm

适用车型

LEXUS (3)

参考号

厂商	号码
RAYBESTOS UNBRANDED	9697*

厂商	号码
RAYBESTOS UNBRANDED	96976*

OE号码

品牌	号码
OE	435125302*
