BOSCH
50011256

第三方数据BOSCH : 50011256

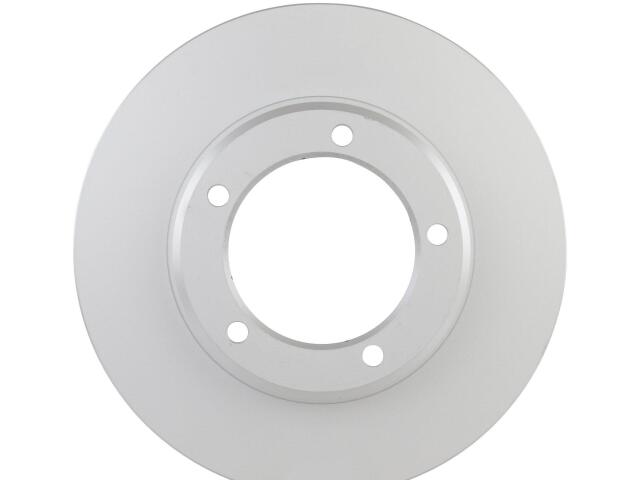

Rotor
BOSCH : 50011256

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 115 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 30 mm
Mounting Bolt Hole Circle Diameter: 144 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 32 mm
Outside Diameter: 312.8 mm
Overall Height: 69.7 mm
Product Height: 2.744094 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 32 mm

适用车型

LEXUS (1)

TOYOTA (1)

参考号

厂商	号码
WORLDPAC	N1000-281842-BO*

OE号码

品牌	号码
OE	435126017*
