BOSCH
50011248

第三方数据BOSCH : 50011248

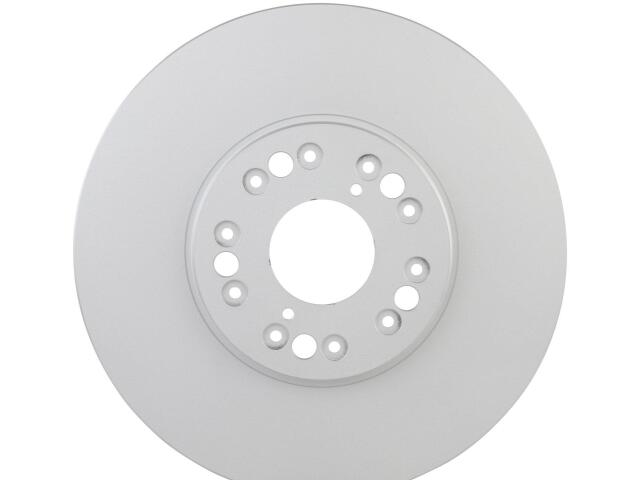

Rotor
BOSCH : 50011248

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 62.3 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 30 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 32 mm
Outside Diameter: 296 mm
Overall Height: 50.7 mm
Product Height: 1.996063 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 32 mm

适用车型

LEXUS (1)

参考号

厂商	号码
WORLDPAC	N1000-52201-BO*

OE号码

品牌	号码
OE	435125010*
