第三方数据BOSCH : 50011221

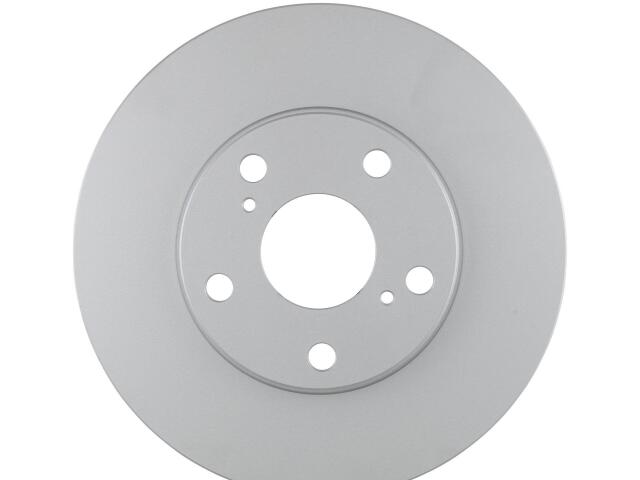

Rotor
BOSCH : 50011221

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 62.05 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 26 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 28 mm
Outside Diameter: 275 mm
Overall Height: 49.4 mm
Product Height: 1.944882 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 28 mm

适用车型

TOYOTA (1)

参考号

厂商	号码
OMNICRAFT	QBRR11*

OE号码

品牌	号码
OE	435120603*

品牌	号码
OE	435120604*

品牌	号码
OE	435123304*
