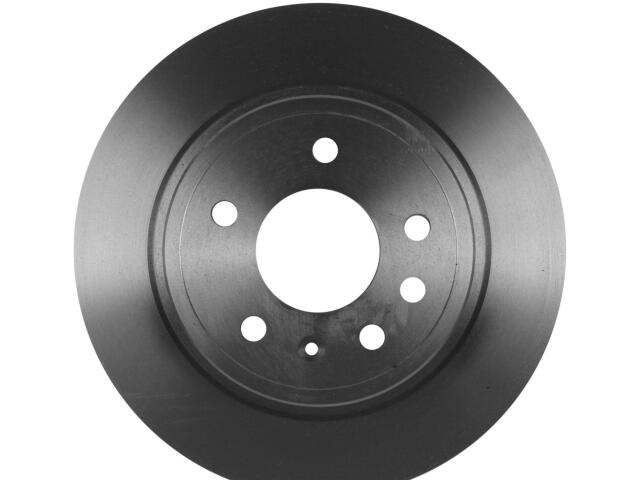

Rotor
BOSCH : 45011177

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 65.5 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Coated
Discard Thickness: 8 mm
Mounting Bolt Hole Circle Diameter: 110 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 10 mm
Outside Diameter: 286 mm
Overall Height: 69 mm
Product Height: 2.716535 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 10 mm

适用车型

SAAB (1)

参考号

厂商	号码
WORLDPAC	N1000-266767-BO*

OE号码

品牌	号码
OE	1276359*
