42011501

第三方数据BOSCH : 42011501

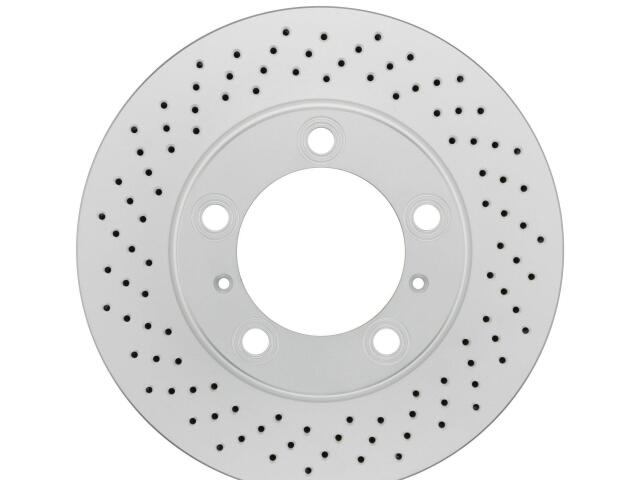

Rotor
BOSCH : 42011501

Bearings Included: No
Brake Surface Finish: X Drilled
Center Bore Diameter: 98 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 22 mm
Mounting Bolt Hole Circle Diameter: 130 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 24 mm
Outside Diameter: 297.9 MM
Overall Height: 67.1 mm
Product Height: 2.641732 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Surface Type: X Drilled
Thickness (Disc Brake Rotor): 24 mm

适用车型

PORSCHE (2)

参考号

厂商	号码
DFC	1311-0750-0*
DFC	1311-1313-0*

厂商	号码
RAYBESTOS UNBRANDED	98062*

厂商	号码
RAYBESTOS UNBRANDED	980621*

OE号码

品牌	号码
OE	9873514010*
