第三方数据BOSCH : 40011601

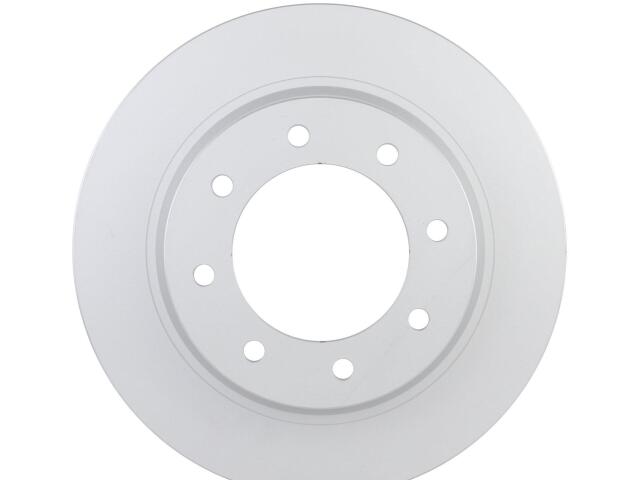

Rotor
BOSCH : 40011601

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 4.843 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 36.5 mm
Mounting Bolt Hole Circle Diameter: 165.1 MM
Mounting Bolt Hole Quantity: 8
Nominal Thickness: 38 mm
Outside Diameter: 359.5 MM
Overall Height: 96 mm
Product Height: 3.779528 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 38 mm

适用车型

NISSAN (3)

NV1500 (1)

NV2500 (2)

NV3500 (2)

OE号码

品牌	号码
OE	402061PA1*
