BOSCH
40011039

第三方数据BOSCH : 40011039

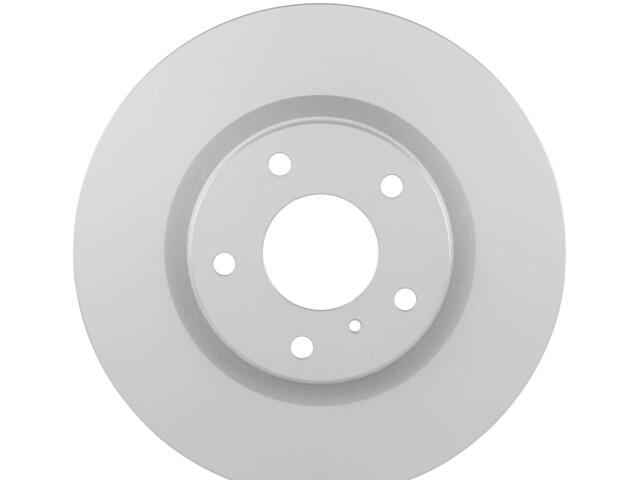

Rotor
BOSCH : 40011039

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 68 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 22 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 24 mm
Outside Diameter: 295.7 mm
Overall Height: 49.3 mm
Product Height: 1.940945 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 24 mm

适用车型

NISSAN (1)

INFINITI (1)

参考号

厂商	号码
WORLDPAC	N1000-119922-BO*

OE号码

品牌	号码
OE	40206AM80*
