BOSCH
38011014

第三方数据BOSCH : 38011014

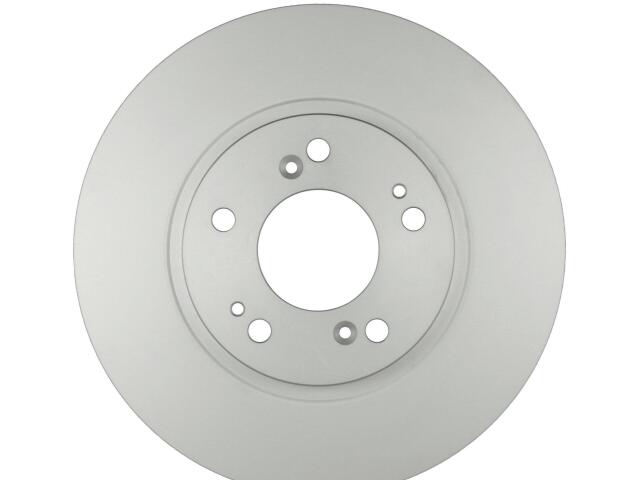

Rotor
BOSCH : 38011014

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 69 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 24.4 MM
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 26 mm
Outside Diameter: 290 mm
Overall Height: 46.4 mm
Product Height: 1.826772 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 26 mm

适用车型

MITSUBISHI (1)

参考号

厂商	号码
DFC	1311-1262-0*

厂商	号码
WORLDPAC	N1000-399510-BO*

OE号码

品牌	号码
OE	4615A06*
