BOSCH
32011461

第三方数据BOSCH : 32011461

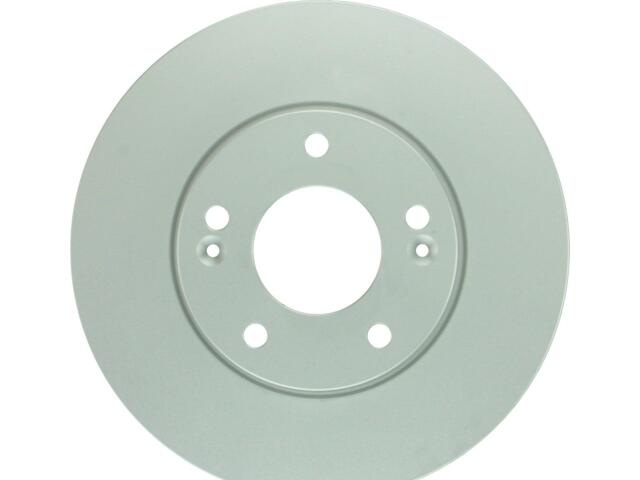

Rotor
BOSCH : 32011461

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 69 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 24 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 26 mm
Outside Diameter: 280 mm
Overall Height: 47.4 mm
Product Height: 1.866142 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 26 mm

适用车型

KIA (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER BRAKES	YH200443*
CARQUEST PREMIUM COATED ROTORS	YH200443*

厂商	号码
RAYBESTOS UNBRANDED	980598FZ*

厂商	号码
RAYBESTOS UNBRANDED	980598*

OE号码

品牌	号码
OE	517121D00*
