BOSCH
32010865

第三方数据BOSCH : 32010865

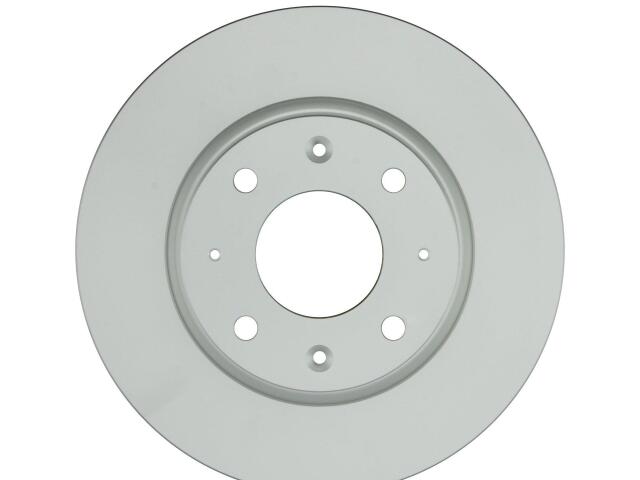

Rotor
BOSCH : 32010865

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 69 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 24 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 26 mm
Outside Diameter: 275.1 mm
Overall Height: 47.3 mm
Product Height: 1.862205 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 26 mm

适用车型

KIA (2)

参考号

厂商	号码
WORLDPAC	N1000-186086-BO*

OE号码

品牌	号码
OE	517122F10*
