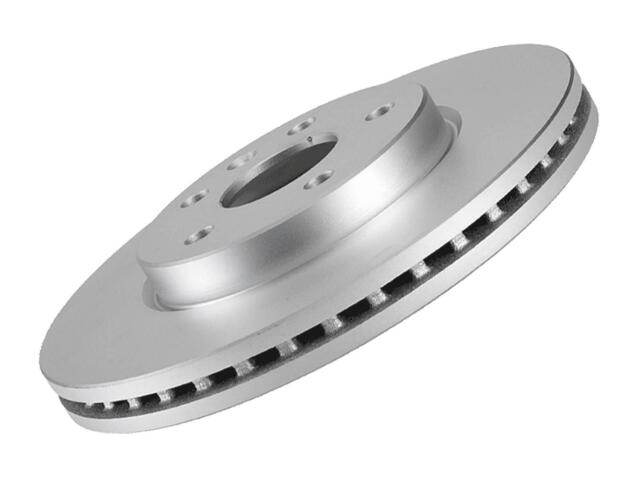

Rotor
BOSCH : 32010863

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 76 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 8 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 10 mm
Outside Diameter: 258 mm
Overall Height: 41.3 MM
Product Height: 1.625984 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 10 mm

适用车型

KIA (2)

参考号

厂商	号码
ATE/PREMIUMONE	41033*

OE号码

品牌	号码
OE	584112F10*
