BOSCH
26010730

第三方数据BOSCH : 26010730

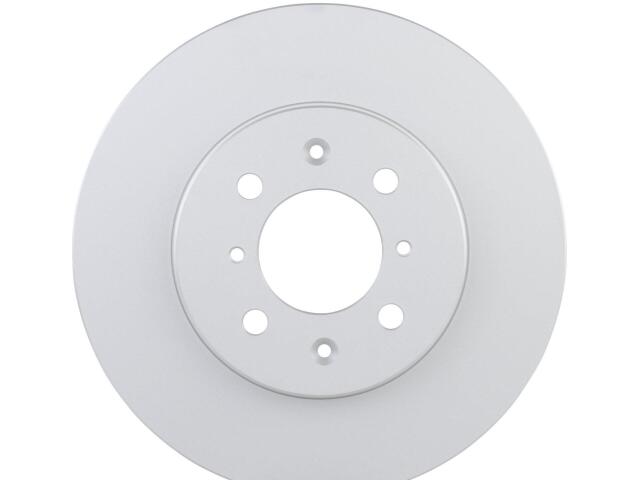

Rotor
BOSCH : 26010730

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 64.15 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 19 mm
Mounting Bolt Hole Circle Diameter: 100 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 21 mm
Outside Diameter: 261.5 mm
Overall Height: 44.7 mm
Product Height: 1.759843 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 21 mm

适用车型

HONDA (1)

ACURA (1)

参考号

厂商	号码
WORLDPAC	N1000-242625-BO*

OE号码

品牌	号码
OE	45251S5DA1*

品牌	号码
OE	45251SB299*
