BOSCH
25010571

第三方数据BOSCH : 25010571

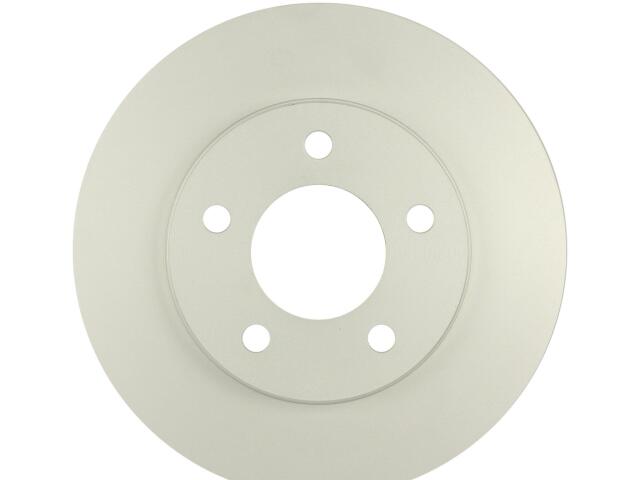

Rotor
BOSCH : 25010571

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 71.1 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 27 MM
Mounting Bolt Hole Circle Diameter: 115 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 30 mm
Outside Diameter: 275 mm
Overall Height: 52 mm
Product Height: 2.047244 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 30 mm

适用车型

BUICK (1)

PONTIAC (1)

参考号

厂商	号码
OMNICRAFT	QBRR12*

OE号码

品牌	号码
OE	1043424*
