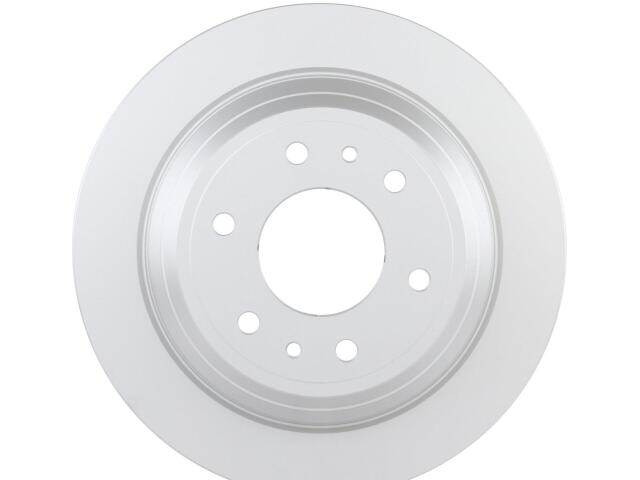

Rotor
BOSCH : 25010547

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 78.7 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 18.5 mm
Mounting Bolt Hole Circle Diameter: 127 mm
Mounting Bolt Hole Quantity: 6
Nominal Thickness: 20 mm
Outside Diameter: 324.9 MM
Overall Height: 85.1 MM
Product Height: 3.350394 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 20 mm

适用车型

ISUZU (1)

SAAB (1)

BUICK (1)

CHEVROLET (2)

GMC (1)

参考号

厂商	号码
WORLDPAC	N1000-190838-BO*

OE号码

品牌	号码
OE	1513467*

品牌	号码
OE	815134671*
