BOSCH
20011518

第三方数据BOSCH : 20011518

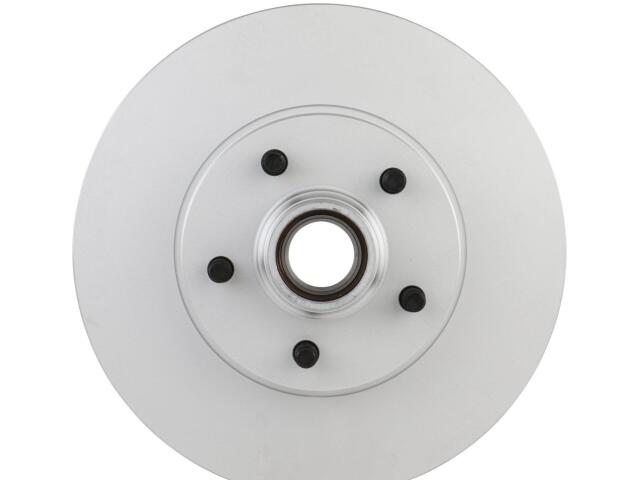

Rotor
BOSCH : 20011518

Bearings Included: Yes
Bolt Circle Diameter: 114.3 mm
Bolt Hole Quantity: 5
Center Bore Diameter: 65.011 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Design: Solid
Disc Finish: Geomet
Discard Thickness: 24.5 mm
Hub Attached: Yes
Nominal Thickness: 26 mm
Outside Diameter (Disc Brake Rotor): 286.6 mm
Overall Height: 108 mm
Product Height: 4.251969 IN
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 26 mm

适用车型

FORD (1)

参考号

厂商	号码
AUTOZONE/RAYBESTOS	68090*

厂商	号码
AUTOZONE/RAYBESTOS	680905*

OE号码

品牌	号码
OE	AL5Z1102*
