第三方数据BOSCH : 20011517

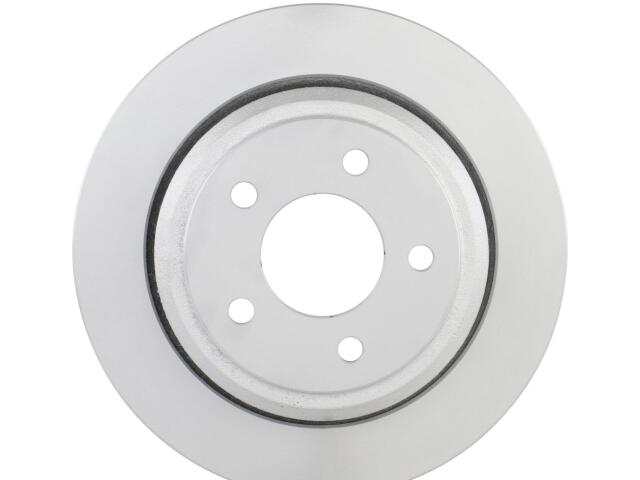

Rotor
BOSCH : 20011517

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 71.2 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 18 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 19 mm
Outside Diameter: 295.1 MM
Overall Height: 61.9 mm
Product Height: 2.437008 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 19 mm

适用车型

FORD (1)

参考号

厂商	号码
RAYBESTOS UNBRANDED	68089*

厂商	号码
RAYBESTOS UNBRANDED	680898FZ*

厂商	号码
RAYBESTOS UNBRANDED	680898*

OE号码

品牌	号码
OE	AL5Z2C026*
