BOSCH
20010513

第三方数据BOSCH : 20010513

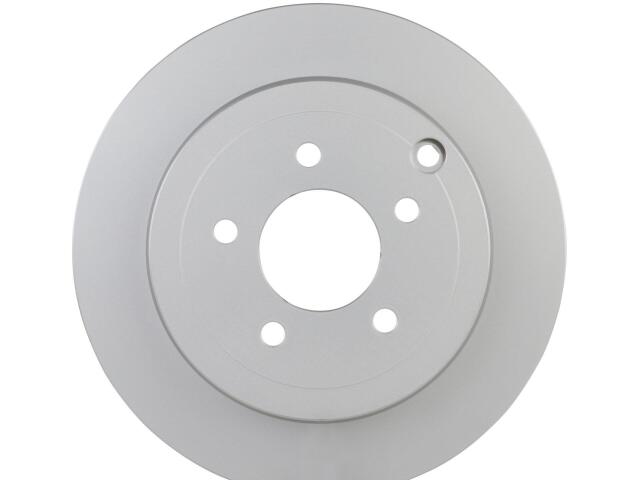

Rotor
BOSCH : 20010513

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 72 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 16 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 18 mm
Outside Diameter: 302.2 mm
Overall Height: 56.6 mm
Product Height: 2.228346 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 18 mm

适用车型

FORD (1)

LINCOLN (1)

参考号

厂商	号码
DFC	1311-0605-0*

厂商	号码
WORLDPAC	N1000-298916-BO*

OE号码

品牌	号码
OE	7U2Z2V026F*
