第三方数据BOSCH : 20010424

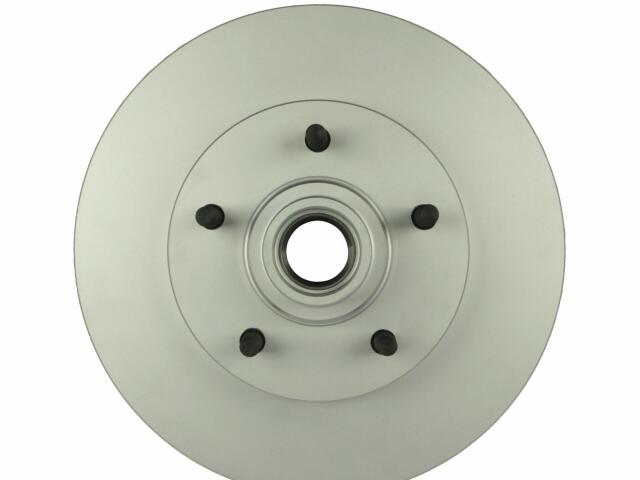

Rotor
BOSCH : 20010424

Bearings Included: Yes
Bolt Circle Diameter: 139.7 mm
Bolt Hole Quantity: 5
Center Bore Diameter: 59.055 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Design: Solid
Disc Finish: Geomet
Discard Thickness: 29.2 MM
Hub Attached: Yes
Nominal Thickness: 31.6 mm
Outside Diameter (Disc Brake Rotor): 326 mm
Overall Height: 124.8 mm
Product Height: 4.913386 in
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 31.6 mm

适用车型

FORD (1)

参考号

厂商	号码
ADVANCE/CARQUEST PREMIUM AC	YH14579*
ADVANCE/CARQUEST WEAREVER BRAKES	YH14579*
CARQUEST/ WEAREVER BRAKES	YH14579*

厂商	号码
CARQUEST/RAYBESTOS	5413*
DFC	600-5419*

厂商	号码
DFC	604-5419*
WORLDPAC	N1000-287141-BO*

OE号码

品牌	号码
OE	4U2Z1V102*
