BOSCH
20010395

第三方数据BOSCH : 20010395

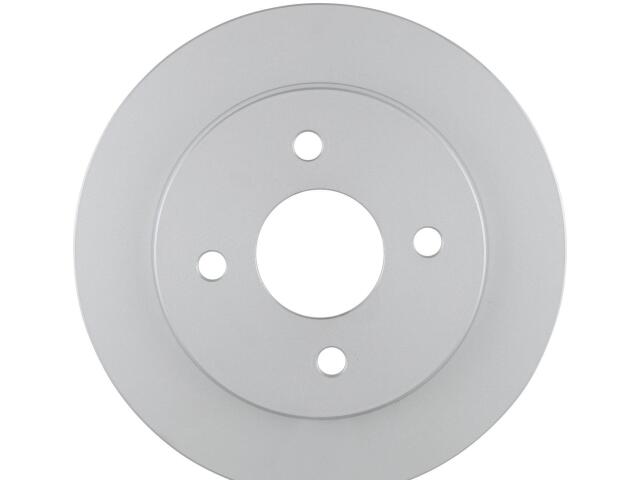

Rotor
BOSCH : 20010395

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 63.7 MM
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 9 mm
Mounting Bolt Hole Circle Diameter: 108 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 10 mm
Outside Diameter: 252.8 MM
Overall Height: 33.2 mm
Product Height: 1.307087 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 10 mm

适用车型

FORD (1)

参考号

厂商	号码
DFC	1311-0602-0*

OE号码

品牌	号码
OE	4U2Z1V125*
