第三方数据BOSCH : 20010388

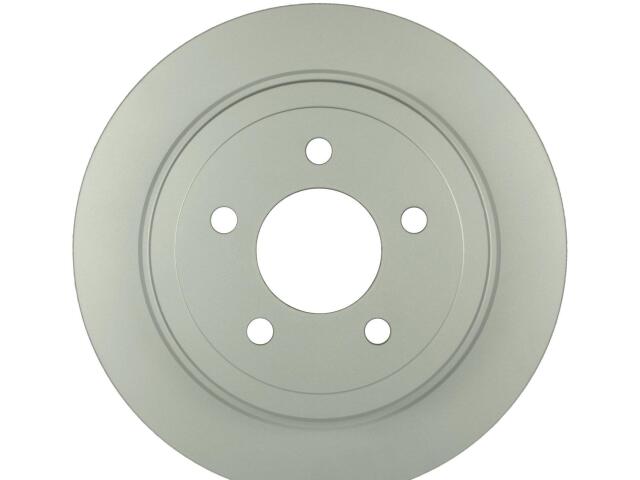

Rotor
BOSCH : 20010388

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 71.2 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 10.5 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 12 mm
Outside Diameter: 300.4 mm
Overall Height: 58.4 mm
Product Height: 2.299213 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 12 mm

适用车型

FORD (1)

参考号

厂商	号码
WD EXPRESS	405 18150 25*

OE号码

品牌	号码
OE	4U2Z1V125*
