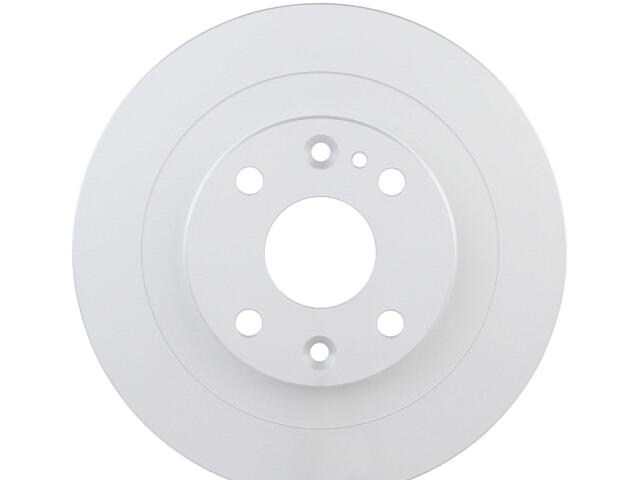

Rotor
BOSCH : 20010382

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 55 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 8 mm
Mounting Bolt Hole Circle Diameter: 100 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 9 mm
Outside Diameter: 250.5 MM
Overall Height: 34.5 mm
Product Height: 1.358268 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 9 mm

适用车型

MAZDA (1)

参考号

厂商	号码
WORLDPAC	N1000-110022-BO*

OE号码

品牌	号码
OE	BB4C2625*

品牌	号码
OE	BB4C26251*

品牌	号码
OE	BR7426251*
