BOSCH
20010370

第三方数据BOSCH : 20010370

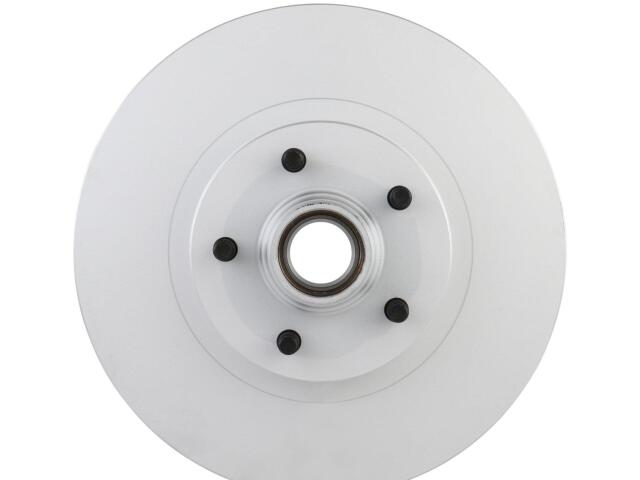

Rotor
BOSCH : 20010370

Bearings Included: Yes
Bolt Circle Diameter: 114.3 mm
Bolt Hole Quantity: 5
Center Bore Diameter: 65.011 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Design: Solid
Disc Finish: Geomet
Discard Thickness: 24.5 mm
Hub Attached: Yes
Nominal Thickness: 25.9 mm
Outside Diameter (Disc Brake Rotor): 304.9 mm
Overall Height: 107.8 MM
Product Height: 4.244094 in
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 25.9 mm

适用车型

FORD (1)

参考号

厂商	号码
CARQUEST/ WEAREVER BRAKES	YH14534*

OE号码

品牌	号码
OE	5L2Z1102B*
