BOSCH
20010315

第三方数据BOSCH : 20010315

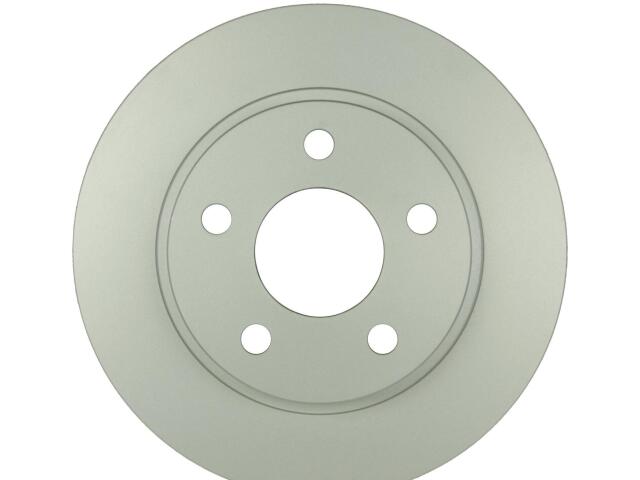

Rotor
BOSCH : 20010315

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 64.5 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 12.75 MM
Mounting Bolt Hole Circle Diameter: 108 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 14 MM
Outside Diameter: 256.5 mm
Overall Height: 39.7 MM
Product Height: 1.562992 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 14 MM

适用车型

FORD (1)

MERCURY (1)

参考号

厂商	号码
DFC	1311-0599-0*

厂商	号码
WORLDPAC	N1000-297863-BO*

OE号码

品牌	号码
OE	YF1Z1V125D*
