BOSCH
20010307

第三方数据BOSCH : 20010307

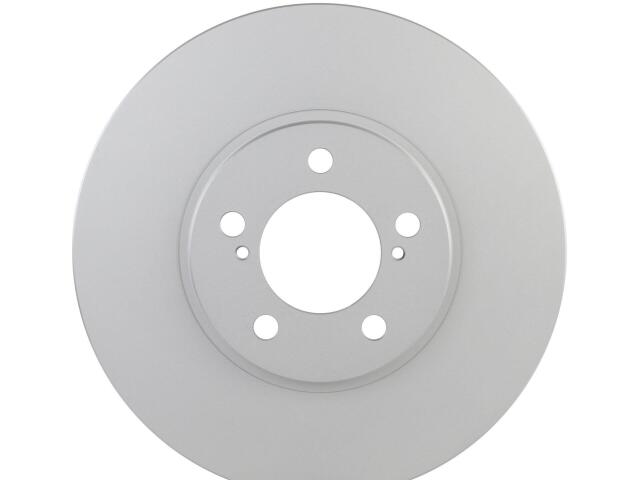

Rotor
BOSCH : 20010307

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 71.1 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 24.7 mm
Mounting Bolt Hole Circle Diameter: 107.95 MM
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 26 mm
Outside Diameter: 293.6 mm
Overall Height: 46.5 mm
Product Height: 1.830709 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 26 mm

适用车型

FORD (1)

MERCURY (1)

参考号

厂商	号码
WORLDPAC	N1000-322310-BO*

OE号码

品牌	号码
OE	YF1Z1V125*
