第三方数据BOSCH : 19010305

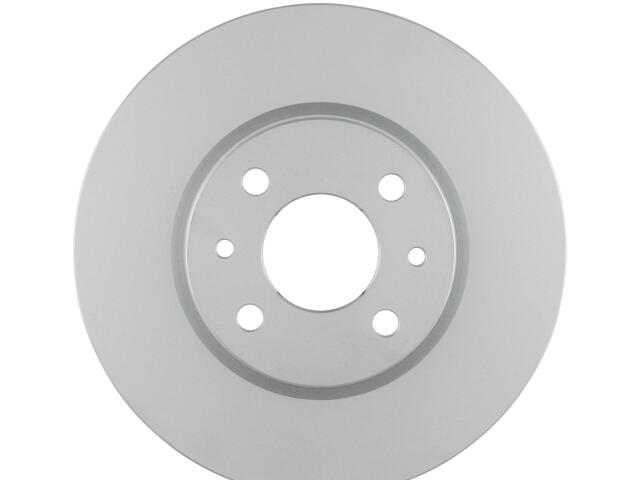

Rotor
BOSCH : 19010305

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 59 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 20.2 mm
Mounting Bolt Hole Circle Diameter: 98 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 22 mm
Outside Diameter: 257.4 mm
Overall Height: 40.5 mm
Product Height: 1.594488 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 22 mm

适用车型

FIAT (1)

参考号

厂商	号码
RAYBESTOS UNBRANDED	980950FZ*

厂商	号码
RAYBESTOS UNBRANDED	980950*

OE号码

品牌	号码
OE	5154237A*
