第三方数据BOSCH : 16011500

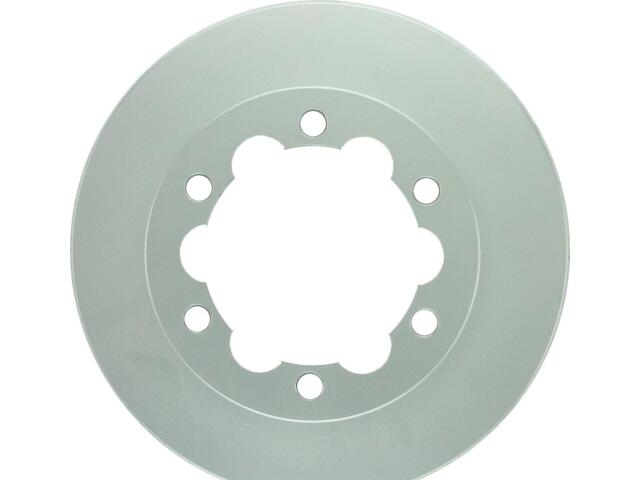

Rotor
BOSCH : 16011500

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 120 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 25 mm
Mounting Bolt Hole Circle Diameter: 145 mm
Mounting Bolt Hole Quantity: 6
Nominal Thickness: 28 mm
Outside Diameter: 303 mm
Overall Height: 93 MM
Product Height: 3.661417 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 28 mm

适用车型

DODGE (1)

FREIGHTLINER (1)

MERCEDES-BENZ (1)

OE号码

品牌	号码
OE	68013765A*

品牌	号码
OE	906423011*
