BOSCH
16010220

第三方数据BOSCH : 16010220

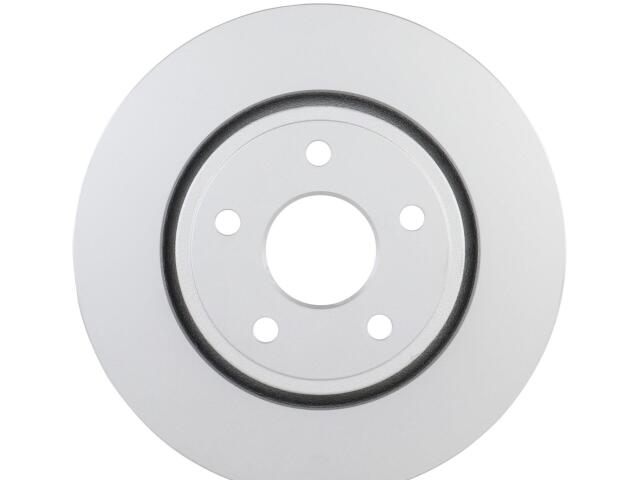

Rotor
BOSCH : 16010220

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 72 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 28.5 mm
Mounting Bolt Hole Circle Diameter: 127 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 30 mm
Outside Diameter: 328 mm
Overall Height: 53 mm
Product Height: 2.086614 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 30 mm

适用车型

JEEP (2)

GRAND CHEROKEE (4)

COMMANDER (3)

参考号

厂商	号码
DFC	1311-0531-0*

厂商	号码
DFC	1311-1078-0*

厂商	号码
WORLDPAC	N1000-193267-BO*

OE号码

品牌	号码
OE	52089269A*
